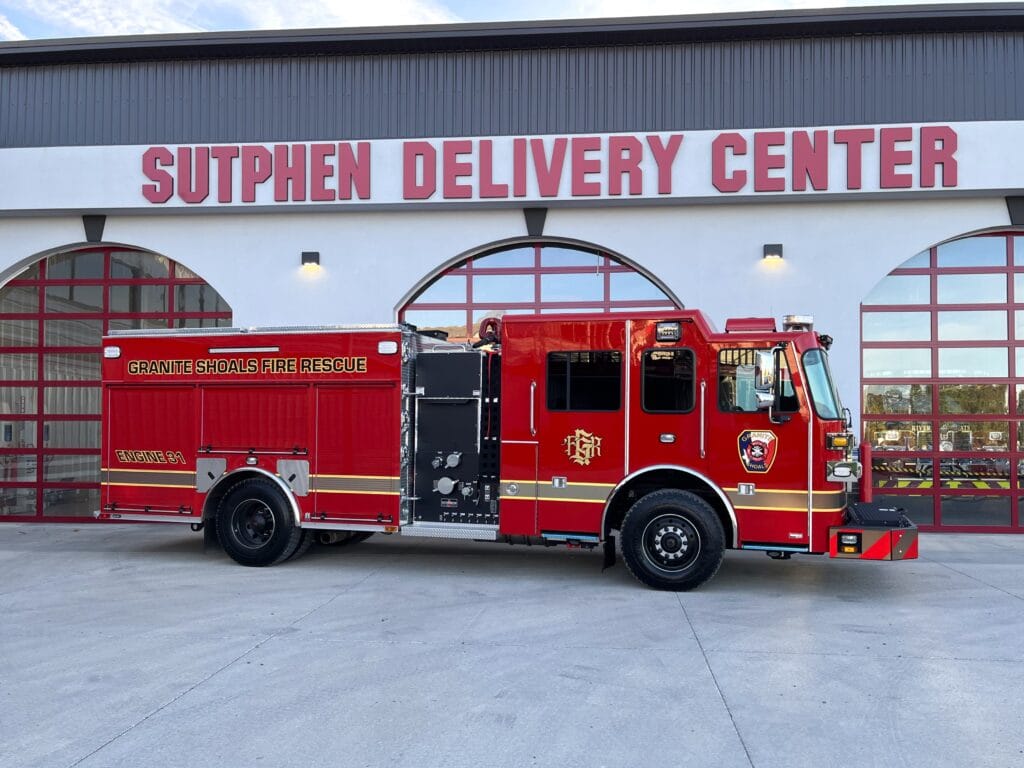

Custom Pumper – Granite Shoals Fire Rescue, TX

Location:
Granite Shoals, TX

Specs

Cab
Four-Door, Five-Person
10" Double Domex
Frame Rails (110K PSI)
Front Axle and Suspension
20,000 lbs w/ (4) 56" Leafs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 6, EVS3000
Pump
Hale QMAX XS 1500 GPM, Single Stage Pump
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front Bumper, 2 ½” Plumbing, (1) 3” Deck Gun
Crosslay
(1) 2 ½”
Speedlays
(2) 2” w/ Swivels & Poly Lift-Out Trays
Water Tank
1,000-Gallon
Foam Tank
25-Gallon
Foam System
Hale SmartForm 2.1A
Construction
3/16" Extruded Aluminum
Compartment Doors
Mixed AMDOR Roll-Up and Hinged Compartment Doors
Total Compartment Space
Over 290 cu ft.
Duo-Safety Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Body
G9 – Alum 40/51 Ladders Thru Tank
Bumper
24" Formed Steel Channel Painted
Federal Q2B
Grille Mount
Camera System
FRC, Inview Trueview, Single Camera (Wired)
Brow Light
FireTech 12V 72" 3-Piece
Lightbar
Whelen Freedom IV 72" LED
Scene Light
FireTech 12V
LED Light
Whelen M6 Red LED
Monitor
Akron Apollo 3423 w/ Quad Stacked Tips & Stream Shaper
