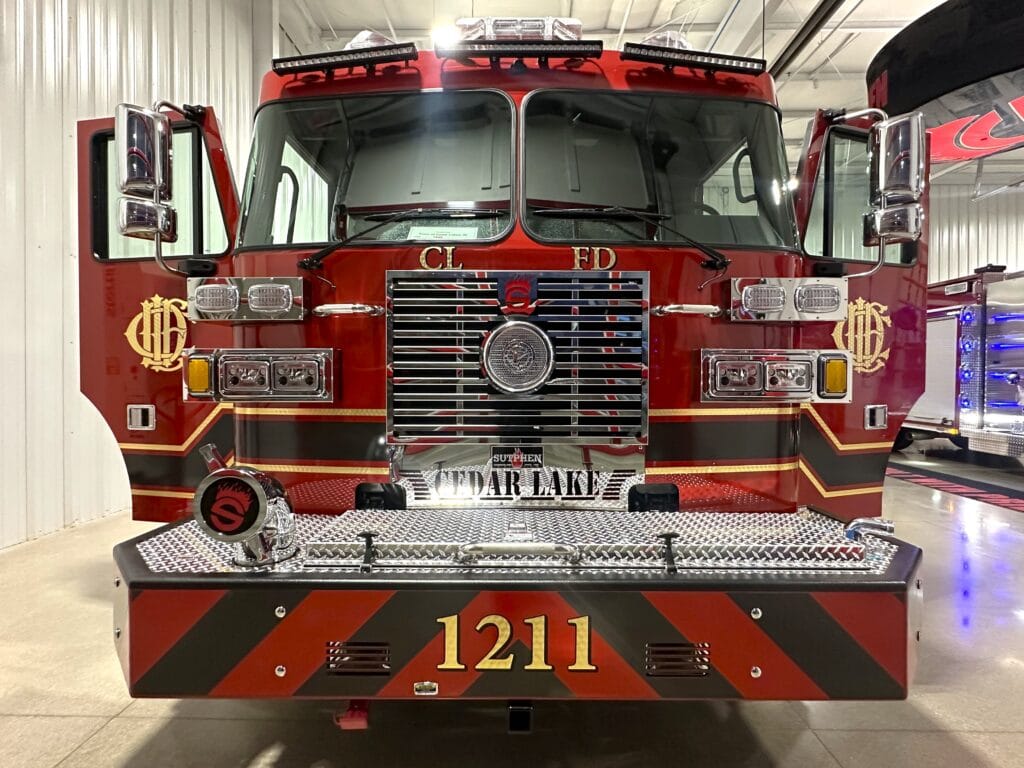

Custom Pumper – Cedar Lake Fire Department, IN

Location:
Cedar Lake, IN
Department:
Cedar Lake Fire Department

Specs

Cab
Four-Door, Four-Person
10" Double
Frame Rails (50K PSI)
Front Axle and Suspension
20,000 lbs w/ (4) 56" Leafs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS3000
Pump
QMAX XS 2000 GPM, Single Stage Pump
Discharges
(2) 2 ½” Left, (1) 3” w/ 4” Outlet Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 2 ½” Front/ Left of Main Hosebed, (1) 1 ½” Front Bumper, 2” Plumbing, (1) 3” Deck Gun
Speedlays
(2) 2” w/ Swivels & Poly Lift-Out Trays
Water Tank
1,000-Gallon
Construction
3/16” Extruded Aluminum
Compartment Doors
ROM Roll-Up Compartment Doors
Total Compartment Space
Over 290 cu ft.
Duo-Safety Ladder Package
900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
Body
G9 – Alum 40/51 Ladders Thru Tank
Bumper
24" Formed Steel Channel Painted
Federal Q2B
Grille Mount
Camera System
FRC, Inview 360 HD w/ Built-In DVR
Warning Light
Roto-Ray, LED
Brow Light
FireTech 72" LED 3-Piece
Lightbar
Whelen 23.25" Freedom IV
Light Tower
Command KL415D-FS
Scene Light
FRC Spectra 12V
