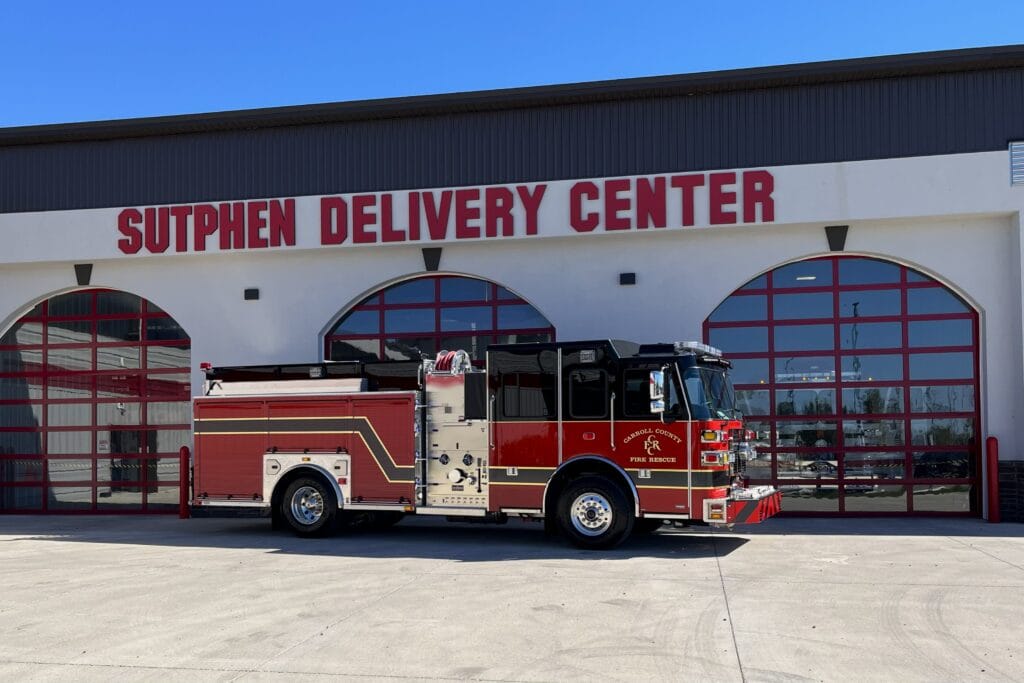

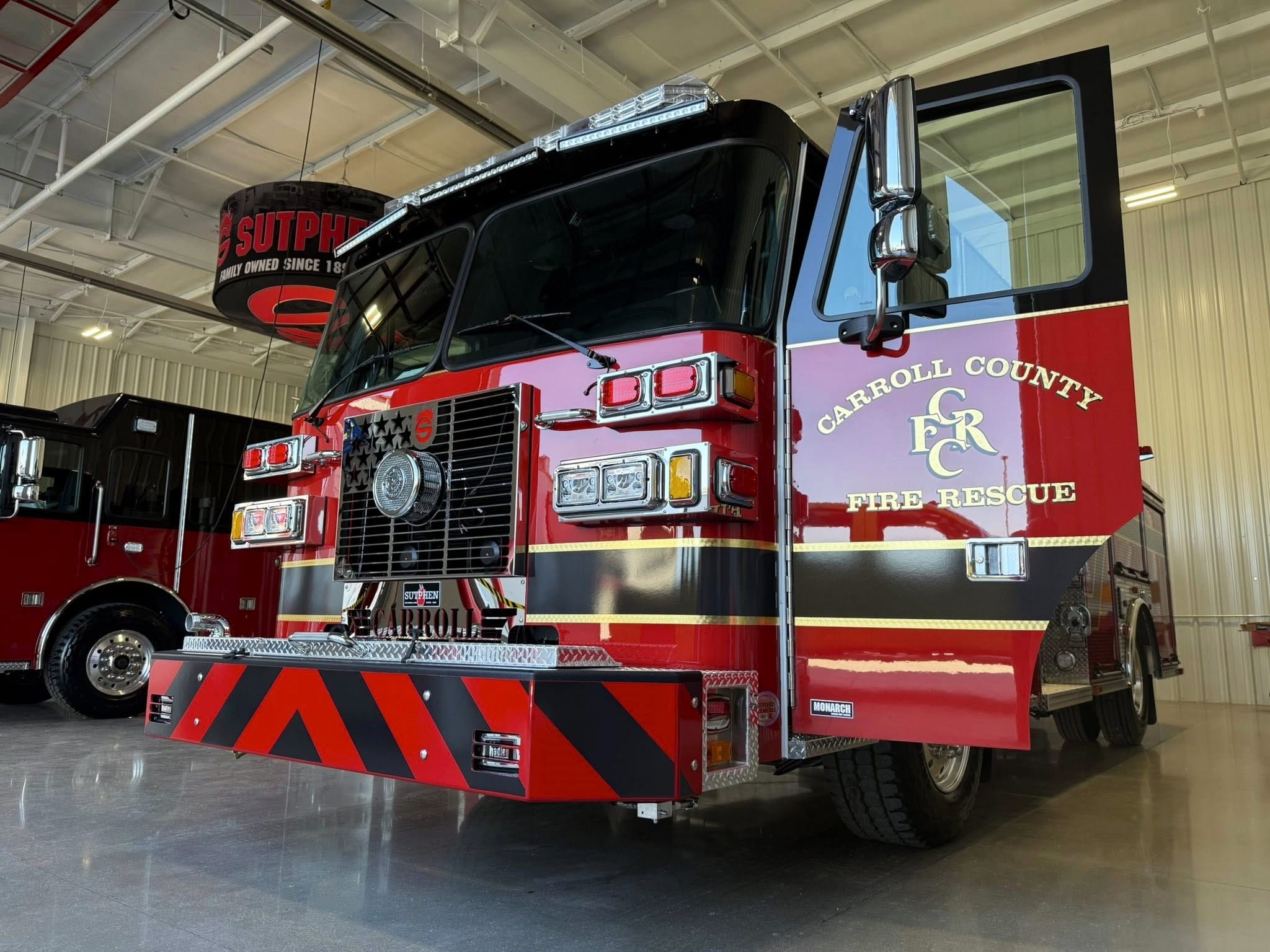

Custom Pumper – Carroll County Fire Rescue, GA

Specs

Cab
Four-Door, Four-Person
10" Double
Frame Rails (50K PSI)
Front Axle and Suspension
20,000 lbs w/ (4) 56" Leafs
Rear Axle and Suspension
24,000 lbs
Engine
Cummins X 12, 500 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 6, EVS4000
Pump
Hale QMAX-1500 GPM, Single Stage Pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 2 ½” Front Bumper, 2 ½” Plumbing, (1) 3” Deck Gun
Crosslays
(2) 2” w/ 1 ½” Swivel
Water Tank
750-Gallon
Foam Tank
30-Gallon
Foam Eductor
Akron 125 GPM External
Construction
3/16" Extruded Aluminum

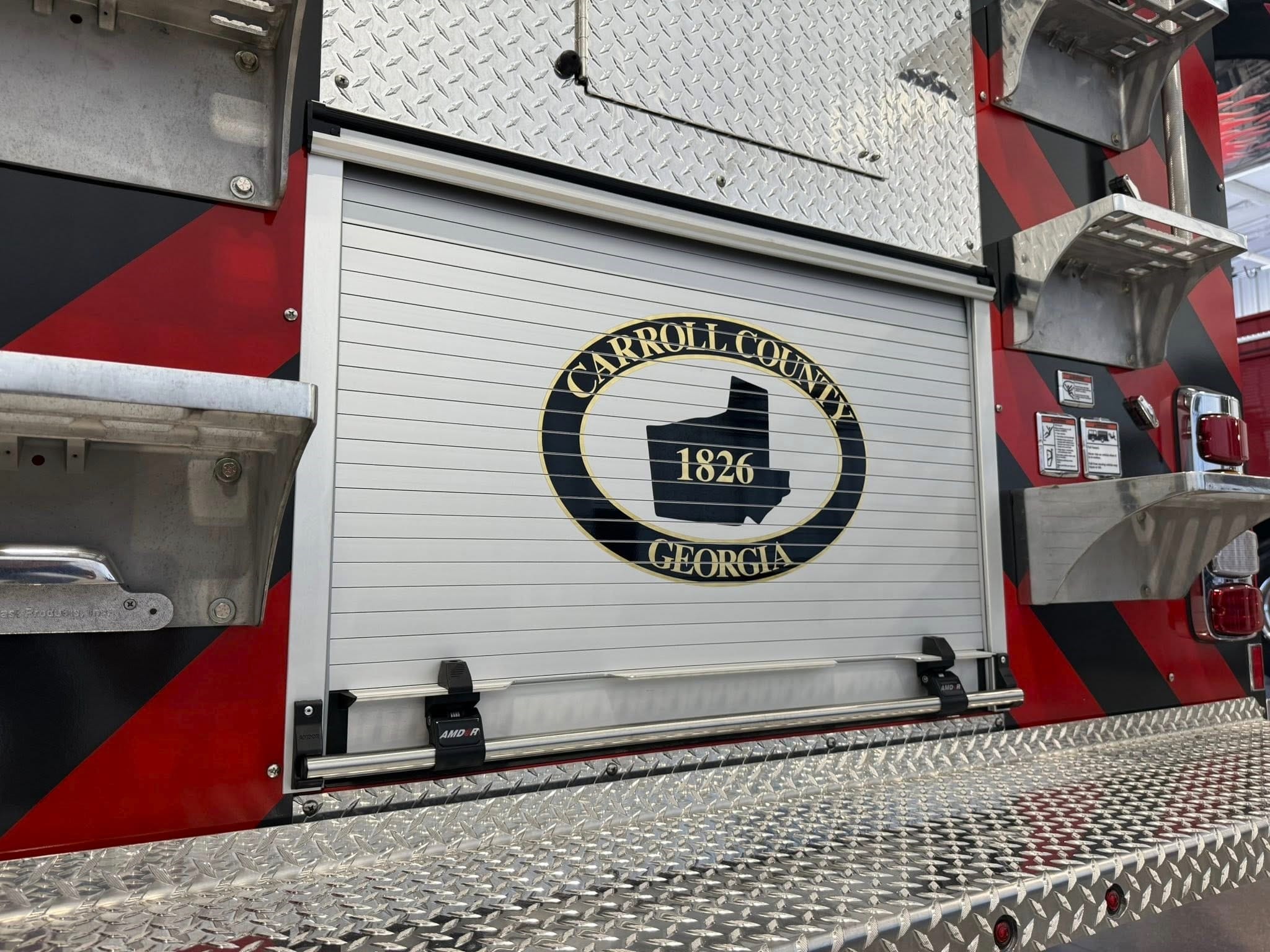

Compartment Doors
AMDOR Roll-Up
Total Compartment Space
Over 240 cu ft.
Duo-Safety Ladder Package
900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
Body
G9 – Alum 40/51 Ladders Thru Tank
Bumper
18" Formed Steel Painted
Federal Q2B
Grille Mount
Camera System
FRC, Inview Trueview, Two Cameras (Wired)
Warning Light
Roto-Ray, LED
Brow Light
HiViz 72"
Lightbar
Whelen Freedom LED
Scene Light
FireTech FT-GESM
