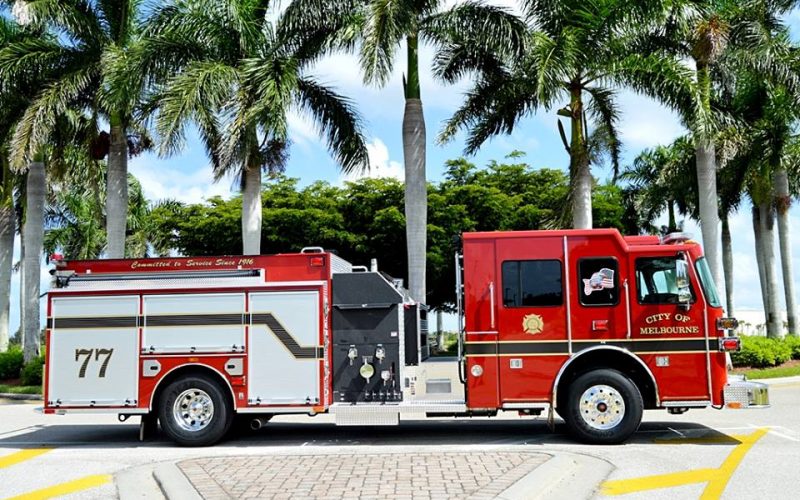

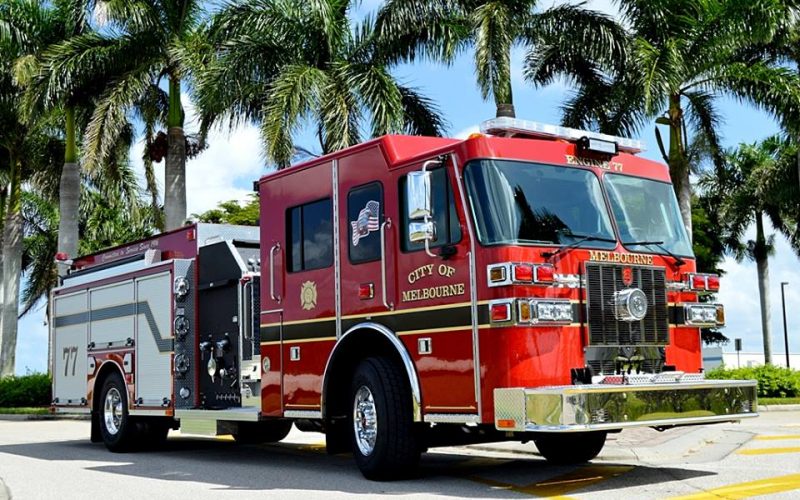

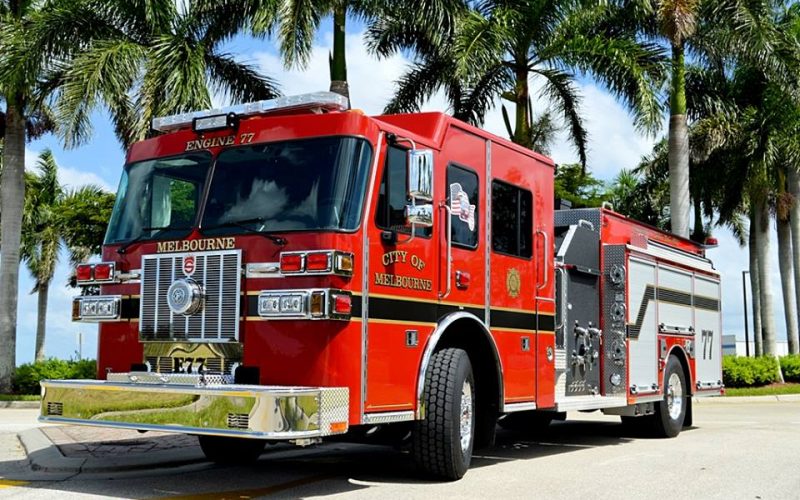

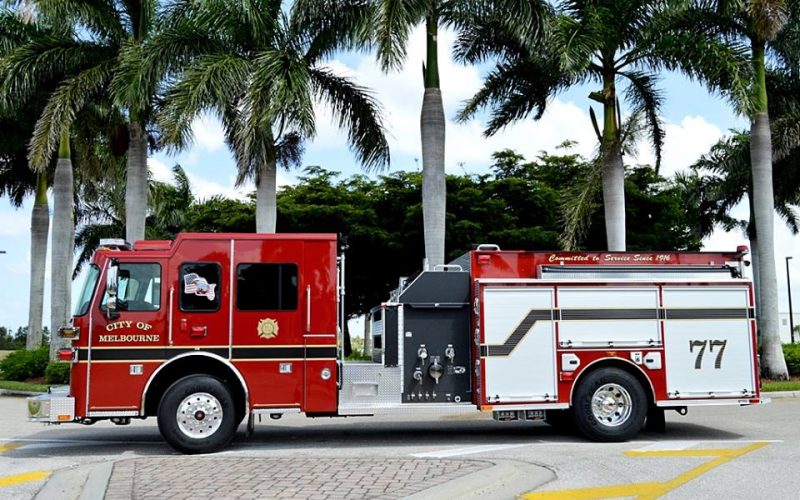

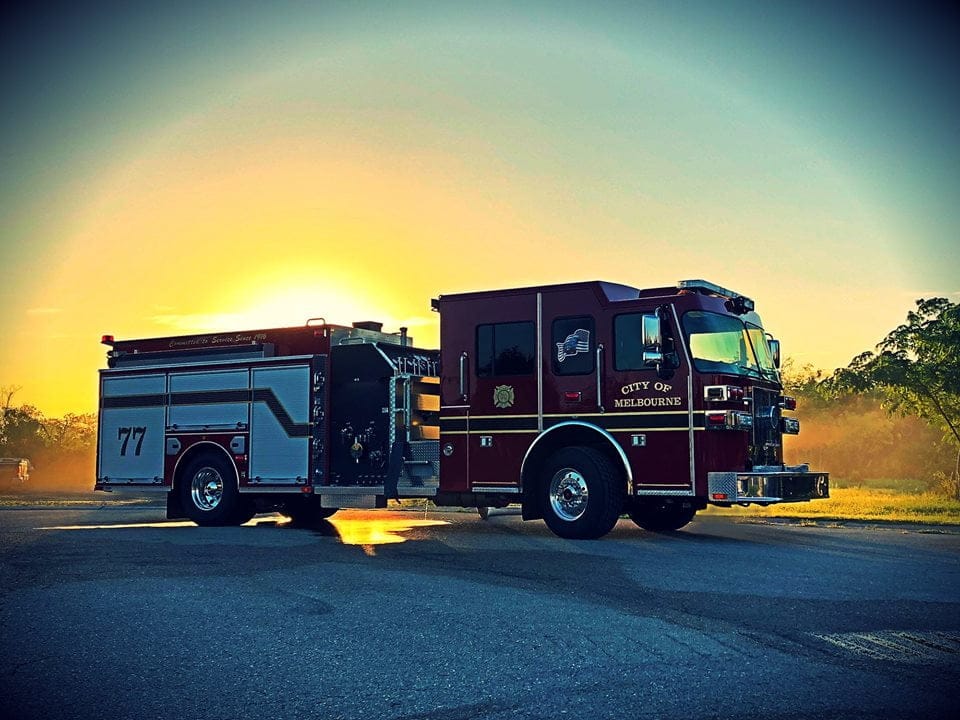

Custom Pumper – Melbourne Fire Department, FL

Truck Type:
Sutphen Heavy-Duty Custom Pumper
Dealer:
Sutphen
Location:
Melbourne, FL
Department:
Melbourne Fire Department

Specs

Cab
Four-door, five-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
24,000 lbs
Engine
Cummins L 9, 400 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-1500 single stage
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 3” Deck Gun
Water Tank
750 gallon
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
222 cu. ft. total storage space
Ladder Compliment
Alco-lite ladders (24’ 2-section, 14’ roof, 10’ folding)
Ladder Compliment
Ladder chute with backboard storage
Bumper Extension
18” , 2” raised lid, center only
Siren
Federal q2b
Siren
Whelen 295hfs2 electric
Pike Pole Storage
Tubes (3)
Whelen PFP2, 12v
Tele
Whelen Freedom IV
Led lightbar
Whelen 600 Super
Led, (2)
