Delivery Date:
09/17/2021
Department Name:
Davis Fire Department
Department City / State:
Davis, OK

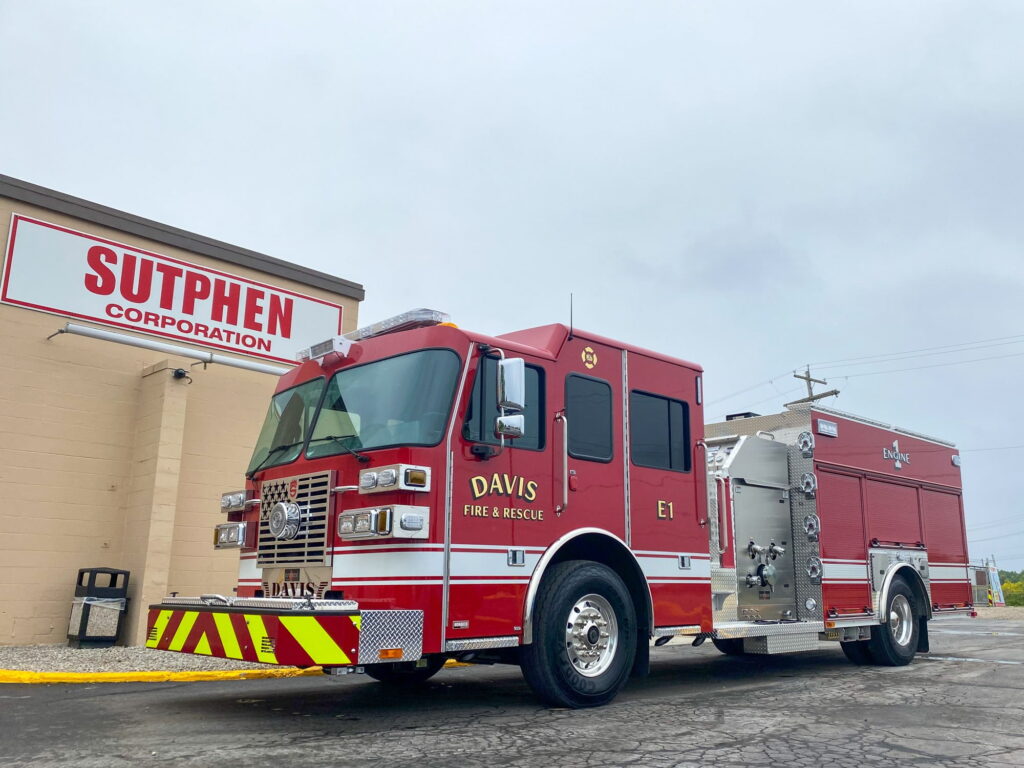

Sutphen Corporation – HS #6897

Dealer – Heartland Fire Trucks

WHEELBASE: 215”

TRAVEL HEIGHT: 9’ – 11”

TRAVEL LENGTH: 34′ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62”cab with 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension: 19,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins L 9, 380 HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                  Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (1) 2 ½”
  • Speedlays: (2) 2” w/ 1 ½” Swivel
  • 1,000-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • 294 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Body: G9 – Alum 40/51 Ladders Through Tank

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Two Cameras
  • Triple Air Bottle Compartments (2)
  • Whelen PFH2 LED Brow Light
  • Whelen Freedom LED Lightbar
  • Whelen PCPMS2 Scene
  • Whelen M9 Red LEDs
