THIS UNIT HAS BEEN SOLD – Please call the sales office for possible new units

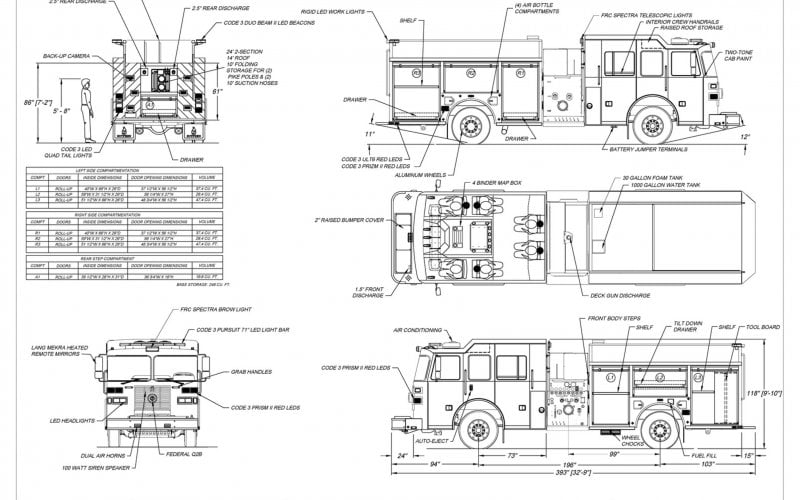

Sutphen Custom Pumper, Demo 446, HS #6209

WHEEL BASE: 196”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 32’ – 9”

CHASSIS:             Sutphen 73”cab with 10” half raised roof

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension: 20,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins L 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                  Hale

  • QMAX-1500 GPM Single Stage
  • Discharge: (2) 2.5” Left, 3” Right, 2.5” Right, 2.5” Left Rear, 2.5” Right Rear, 1.5” Front Bumper, 3” Deck Gun
  • 30-Gallon Foam Tank
  • 1000-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • 246 cu. ft. Total Compartment Space
  • Ladder Chute
  • Alco-Lite (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • ROM Roll-Up Doors

OPTIONAL EQUIPMENT:

  • 24” Extended Bumper
  • Safety Vision SV-CLCD0-70, Camera System
  • Federal Q2B Siren
  • Code 3 Pursuit 71” LED Light Bar
  • Code 3 Prism II Red LEDS
  • Code 3 Duo Beam II LED Beacons
  • Code 3 V-Con 3692 Elec. Siren
  • FRC Spectra Brow Light
  • FRC Spectra Telescopic Lights
