Available for Immediate Delivery

Factory Reconditioned and Ready for Service

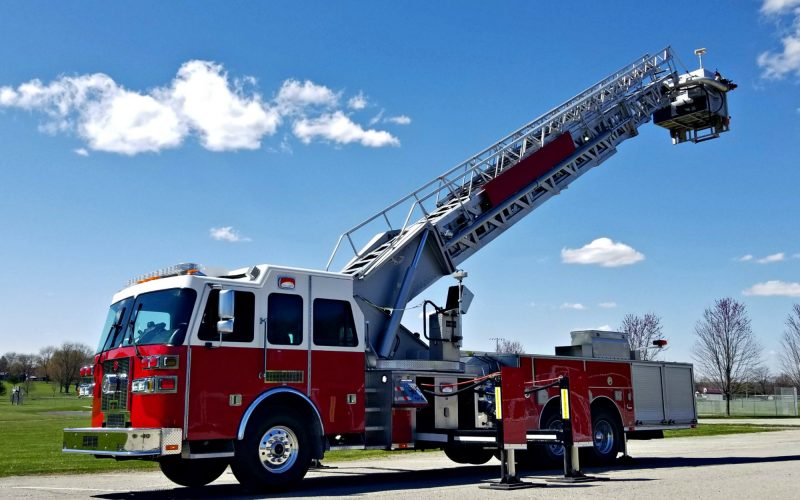

2003 Model 110’ Magnum Aerial Platform (HS #3695)

WHEELBASE: 252”

AERIAL HOURS: 559

MILES: 77,000

WARRANTY: 90-Day Limited Warranty on Work Performed as Part of the Recondition

GRAPHICS: Not Included

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Frame Rails
  • Front Axle and Suspension 21,500 lbs
  • Rear Axle and Suspension 40,000 lbs
  • Engine: Caterpillar C-12, 455 HP (Re-Serviced)
  • Alternator: Prestolite/Leece Neville 320 AMP
  • Transmission: Allison, 5-Speed

PUMP:                 Hale

  • Q-Max, 1,500 GPM
  • Discharges: (1) 2”, (1) 3” Waterway, (1) 2 ½” Left Side, (1) 2 ½” Right Side, (1) 3” Right Side
  • Crosslay: (1) Front, (1) Rear Above Pump with 2 Swivels
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • ROM Roll-Up and Slam Compartment Door
  • Duo Safety Ladder Compliment: (1) 35’ 3-Section, (1) 24’ 2-Section, (2) 16’ 2-Section, (1) 14’ Combo

ADDITIONAL EQUIPMENT:

  • New LED/Scene Lights (Chassis and Body)
  • New LED Warning and Ground Lights
  • New Accuride Aluminum Wheels
  • Hannay Electric Cord Reel, 200’ (1)
  • 6KW Smart Power Generator
  • Kussmal Air Eject
  • Jacobs Engine Brake
  • Heat and A/C
  • Dual Air Horns
  • Electric Siren and Q2B
  • Class 1 Load Manager
  • Kussmal 20A Battery Charger
  • Class 1 TPG
  • David Clark Intercom System (No Headsets)
  • Sauer Danfoss Bucket Control

CONTACT INFORMATION:

  • Sutphen Service and Technical Division
  • Phone: 866-287-5549
  • Address: 49 N. Ludlow Road / Urbana, Ohio 43078
