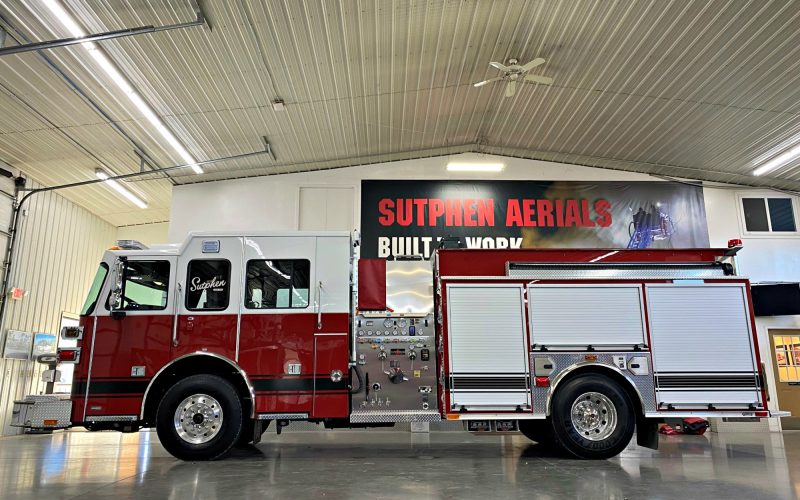

Sutphen Custom Pumper, Demo 484, HS #6739

WHEELBASE: 196”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 33′ – 1”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73”cab with 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension: 20,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins L 9, 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                  Hale

  • QMAX-1500 GPM, 6” Suction Single Stage Pump
  • Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (2) 1 ½” & (1) 2 ½” w/ Swivels
  • 1,000-Gallon Water Tank
  • 30-Gallon Foam Tank

BODY:                  Sutphen

  • ROM Roll-Up Compartment Doors
  • Over 230 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (10’ Folding & PRL-14 14’ Roof & PEL-24 24’ 2-Section)
  • Ladder Chute with Backboard Storage
  • Body S2-Alum 43/53 Ladder Chute

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC Inview Trueview
  • FRC Spectra 12V Tele
  • FRC Spectra LED 12V Brow Light
  • FRC Spectra 900 LED 12V Scene Lights
  • Whelen Freedom IV 72” LED Lightbar
  • Whelen L31 LED Rear Beacons
