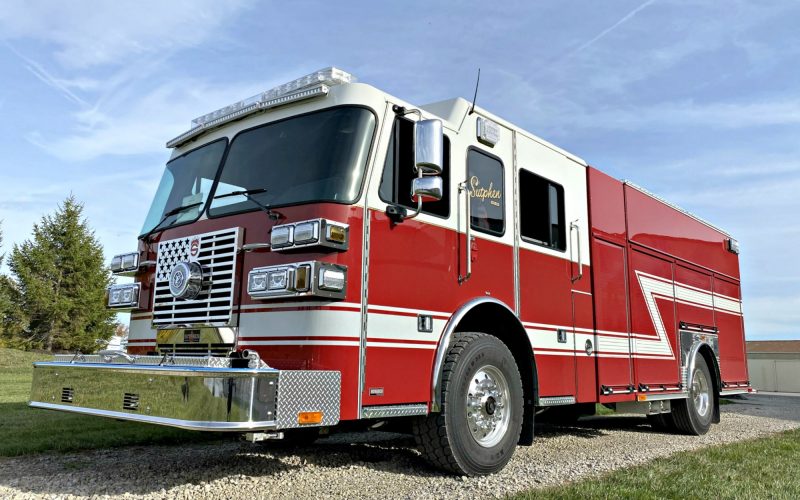

Sutphen Custom Pumper, Demo 481, HS #6790

WHEELBASE: 197”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 33′ – 1”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73”cab with 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension: 23,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins L 9, 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                  Hale

  • XS QMAX-1500 GPM, 6” Suction Single Stage Pump
  • Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlay: (2) 2” w/ 1 ½” Swivel & Poly Lift-out Trays
  • 1,000-Gallon Water Tank
  • 30-Gallon Foam Tank

BODY:                  Sutphen

  • ROM Roll-Up Compartment Doors
  • 50 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (10’ Folding & 14’ Roof & 24’ 2-Section)
  • Fully Enclosed Ladder Chute
  • Body: S8 – Alum 56/53 Lad Thru Tank and Double Hatch

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • FRC Inview Trueview Camera System
  • Firetech 72” 3-piece Brow Light
  • Firetech Guardian 12V Scene Lights
  • Whelen Freedom IV Lightbar
  • Whelen 600 Warning Lights
  • Whelen 900 Warning Lights
  • Whelen 500 Super LED Lights
