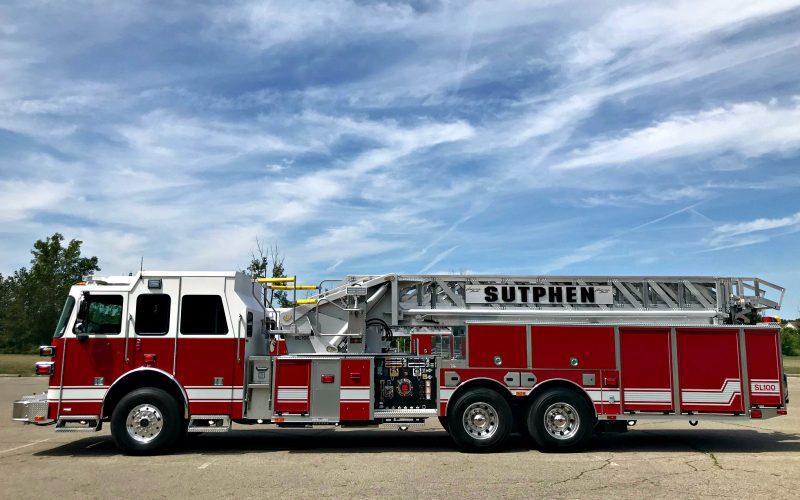

Demo 480 – SL 100 Aerial Ladder

THIS UNIT HAS BEEN SOLD – Please call the sales office for possible new units

Sutphen SL 100, Demo 480, HS #6753

WHEEL BASE: 242”

TRAVEL HEIGHT: 10’ – 2”

TRAVEL LENGTH: 44′ – 1 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62”cab with 10” Raised Roof

• Four-Door, Six-Person Cab
• 10” Double Domex Frame Rails (110K PSI)
• Front Axle and Suspension: 23,000 lbs.
• Rear Axle and Suspension: 44,000 lbs.
• Engine: Cummins X 12, 500HP
• Alternator: Leece Neville 320 AMP
• Transmission: Allison Gen 5, EVS4000

PUMP:                  Hale

• QMAX-2000 GPM, 6” Suction Single Stage Pump
• Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
• Crosslay: (1) 2 ½” w/ 2 ½” Swivel, (2) 2” w/ 1 ½” swivel
• 300-Gallon Water Tank

BODY:                  Sutphen

• ROM Roll-Up Compartment Doors
• 236 cu. ft. Total Compartment Space
• Duo-Safety Ladders (10’ Folding & 14’ Roof & (2) 16’ Roof & 24’ 2-Section & 35’ 3-Section)
• Ladder Chute
• Body SL100-2 – Left High/ Right High

ADDITIONAL EQUIPMENT:

• 18” Polished Stainless Steel Bumper Extension
• Federal Q2B Siren, Grille Mount
• 6KW Smart Power Generator
• FRC Inview Trueview Camera System
• 7 Bottle Compartments
• FRC Spectra 12V LED Brow Light
• Whelen Freedom 4 Lightbar
• FRC Spectra 900 Scene Lights
• FRC Spectra 240V LED Fixed Scene Light
• FRC Specrtamax LED 240v Scene Light
• FRC Spectra LED Telescoping Lights
