Truck Type:

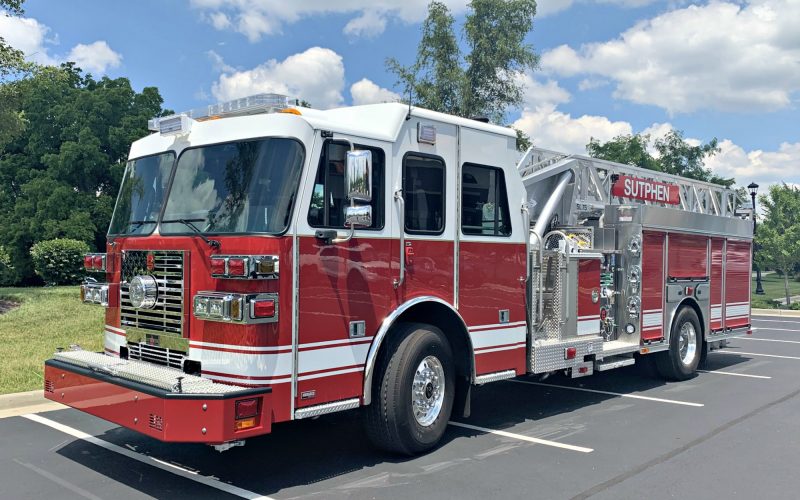

Sutphen SL 75, Demo 478, HS #6684

WHEELBASE: 221”

TRAVEL HEIGHT: 10’ – ½”

TRAVEL LENGTH: 41’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left, (1) 1 ½” Front Bumper
  • Crosslays: (2) 2” w/ 1 ½” Swivel
  • 500-Gallon Water Tank
  • 20-Gallon Foam Tank

BODY:                  Sutphen

  • Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • 73 cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24 24’ 2-Section & 35’ 2-Section & 16’ Roof & 10’ Folding)
  • Body: SAA-4

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel Bumper Extension
  • FRC Inview Trueview Camera System
  • Federal Q2B Siren, Grille Mount
  • FRC Spectra LED Brow Light
  • Whelen Freedom 4 LED Lightbar
  • FRC Spectra 12V 15K Scene Lights
  • FRC Spectra 900 Scene Lights
  • Firetech 12V LED Rear Work Lights
