WHEEL BASE: 258”

TRAVEL HEIGHT: 11’-6”

TRAVEL LENGTH: 48’-6”

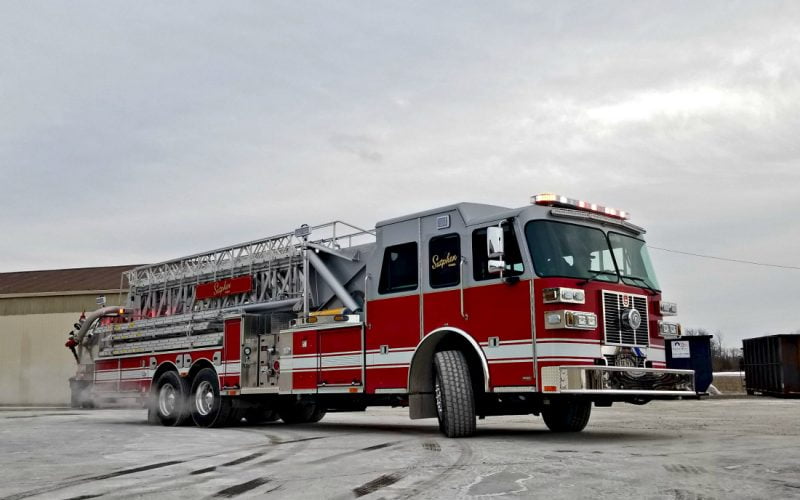

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 44,000 lbs
  • Engine: Cummins ISX 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
  • Crosslays: (2) 2” Valve-Piping 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Amdor Roll-Up Compartment Doors
  • Alco-Lite Ladder Compliment (115’, 14’, 16’, 16’, 24’ 2-Section, 35’ 3-Section and 10’ Folding)
  • Stainless Steel Left High/ Right Low

OPTIONAL EQUIPMENT:

  • 12” Bumper Extension
  • Brigade Backeye 360 Camera System
  • Federal Q2B
  • Hannay Electric Cord Reel, 100’ (1)
  • 10KW Harrison Generator
  • Pike Pole Storage Tubes (6)
  • Federal Q2B Siren
  • Firetech 3-Piece 12V LED Brow Light
  • Whelen Freedom IV 72” LED Light Bar

MONITOR:

  • Driver Side Monitor: Akron 3473, Gemini Manual, 1000 GPM
  • Driver Side Nozzle: Akron 5160 Auto
  • Officer Side Monitor: Akron 3473 Gemini Manual 1000 GPM
  • Officer Side Nozzle: Akron 2499 and 3488 Pipe
