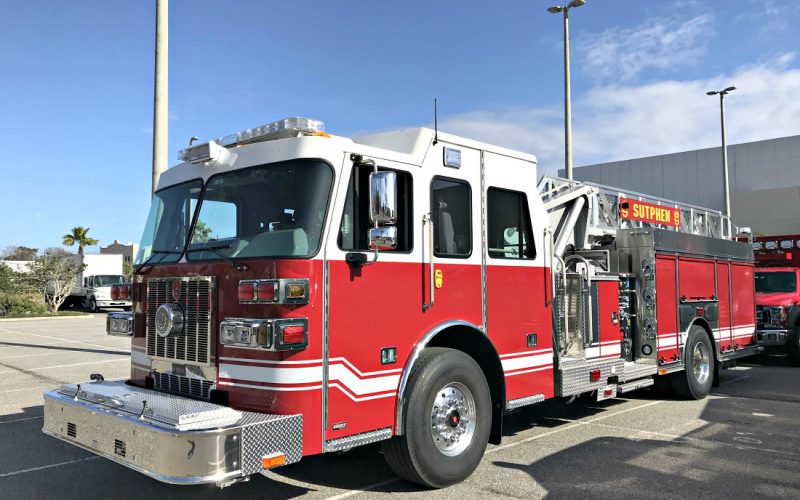

Sutphen SL 75 Aerial Ladder, Demo 451, HS #6297

WHEEL BASE: 221”

TRAVEL HEIGHT: 10’-0 ½”

TRAVEL LENGTH: 41’-0 ¼”

CHASSIS:             Sutphen Monarch Heavy Duty-Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM Single Stage
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side Body, (1) 1 ½” Front Bumper
  • Crosslays: (2) 2” Valve-Piping with 1 ½” Swivel
  • Monitor: Elkhart 7250 Cobra EXM with SM1500E Nozzle
  • 30-Gallon Foam Tank
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Amdor Roll-Up Doors
  • Over 192 cu. ft. Total Compartment Space
  • Alco-Lite Quint Ladder Compliment (85’, 16R’, 24’ 2-Section, 35’ 3-Section & 10’F)

OPTIONAL EQUIPMENT:

  • FRC Inview Trueview Single Camera System
  • Federal Q2B Siren
  • 6KW Smart Power Generator
  • Hannay Electric Cord Reel, 150’ (1)
  • 24” Bumper Extension
  • Whelen Freedom 4 Lightbar
  • FRC Spectra 20K 12V LED Brow Light
