Delivery Date:
06/14/2019
Department Name:
Pattonville Fire Protection District
Department City / State:
Overland, MO

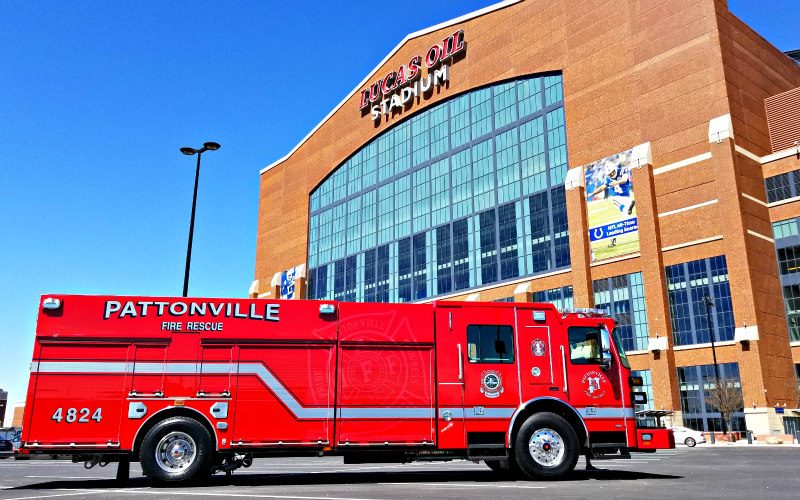

Sutphen Corporation – HS #6228

Dealer – Cashion Fire Equipment

WHEEL BASE: 234”

TRAVEL HEIGHT: 9′ – 10”

TRAVEL LENGTH: 36’ – 2”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • A.M. System with (2) Displays
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper, (1) 3” Deck Gun, (1) 2 ½” Rear Through Water Tank and Out Into the Rear of the A1 Compartment
  • Speedlays: (2) 1 ½” w/ Lift Out Tray
  • Monitor: Akron 3433 Apollo High Rise
  • 750-Gallon Water Tank
  • (2) 30-Gallon Foam Tank
  • Hale 5.0 Foam System with CAFS

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 418 cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • 24” Stainless Steel Bumper Extension, 2” Raised Lid, and Deep Compartments, Full Width w/ Divider in Center Section Storage Well
  • 10KW Smart Power Generator
  • (1) Hannay Electric Cord Reel, 175’
  • Whelen Freedom IV Rota-Beam Lightbar
  • Whelen 295HFS2 Electric Siren
  • Firetech 3-Piece 12V LED Brow Light
  • (4) FRC Spectra 900 Scene Lights
  • Command Knight KL415-FS (6) Head LED Spectra w/ Blue Strobe/Body Light Tower
  • Federal Q2B
