Delivery Date:
09/17/2020
Department Name:

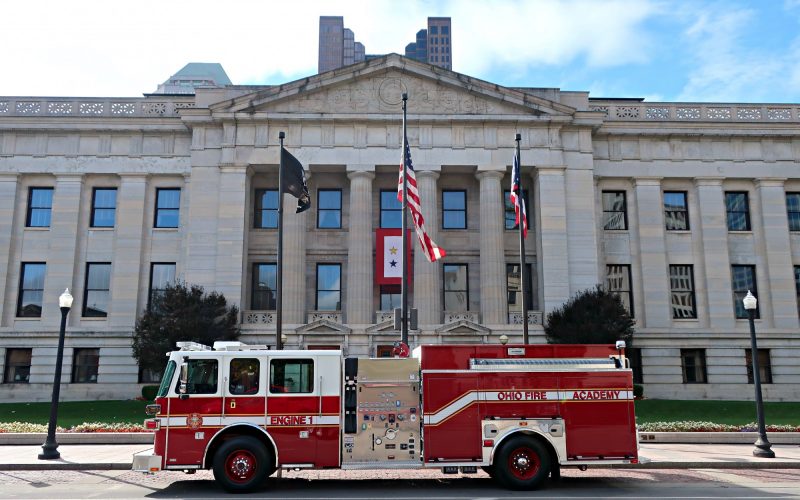

Ohio Fire Academy
Department City / State:
Reynoldsburg, Ohio

Sutphen Corporation – HS #6659

Dealer – Heritage Fire Equipment

WHEELBASE: 212”

TRAVEL HEIGHT: 9’ – 9”

TRAVEL LENGTH: 33’ – 1”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a Flat Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 380 HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS 3000

PUMP:                 Waterous

  • CMU-1500 GPM, Two Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Left Rear, (1) 3” Deck Gun
  • Crosslay: (1) 2 ½”
  • Speedlay: (2) 2” w/ Swivels and Poly Lift-Out Trays
  • Monitor: Deck Gun Monitor Task Force Tips Hurricane, 1250 GPM Master Stream Combination Nozzle and Quadruple Stacked Tips
  • 500-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foam System, Foampro 2002 System, 5.0 GPM

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • 222 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Package (900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding)
  • Ladder Chute with Backboard Storage
  • Body: G2-Alum 40/51 Ladder Chute

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless Steel Bumper Extension
  • Camera System: FRC, Inview Trueview, Single Camera
  • HiViz 72” Brow Light
  • Whelen Freedom LED Lightbar
  • FireTech FT-MB-2.27-F-B Scene Light
  • FRC Spectra 20K Lumen LED Scene Lights
