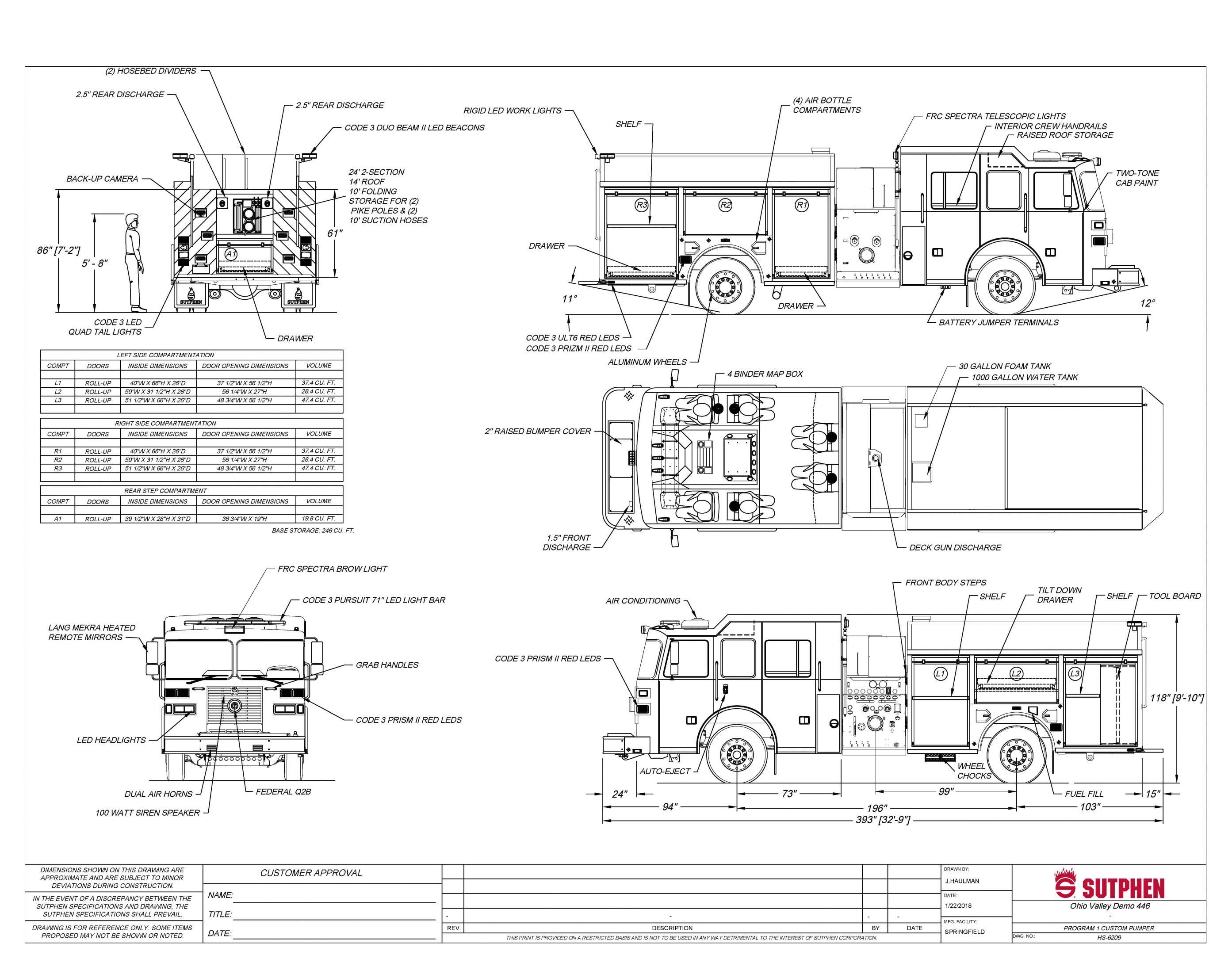

WHEEL BASE: 196”

TRAVEL HEIGHT: 9’ 10”

TRAVEL LENGTH: 32’ 9”

CHASSIS:              Sutphen 73”cab with 10” half raised roof

  • Four-Door, Four-Person Cab
  • Front Axle and Suspension: 20,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins L 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

PUMP:                  Hale

  • XS QMAX 1500 GPM Single Stage
  • Discharge: (2) 2.5” Left, 3” Right, 2.5” Right, 2.5” Left Rear, 2.5” Right Rear, 1.5” Front Bumper, 2” Plumbing, 3” Deck Gun
  • 30 Gallon Foam Tank built into booster tank
  • 1000 Gallon Water Tank

BODY:                   Sutphen

  • Aluminum
  • 246 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Overhead storage, Front of 10” RR w/NET
  • 24” Polished Stainless Steel Bumper
  • Flat Work Surface in lieu of Glove Box
  • 12V Power Point
  • Vehicle Data Recorder, Akron/Weldon
  • Defroster Ductwork, Entire Windshield
